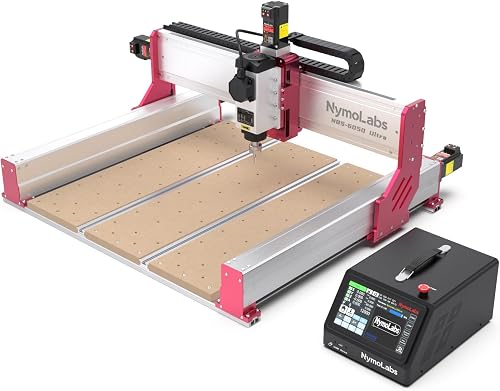

NBS-6050 Ultra CNC Router Machine
$3,499.00
Key features
- [Advanced 7" Touchscreen CNC Controller] 4-Axis Control, ATC Ready & Smart Machining Featuring a responsive 7-inch HD touchscreen with an intuitive UI, this CNC controller supports 4-axis machining, ATC expansion, macro programming, and MPG handwheel control. Includes real-time…
- [NEMA24 Closed-Loop Motors] High Torque Performance with Zero Step Loss Powered by NEMA24 closed-loop stepper motors delivering up to 3.0 N·m torque, this system ensures smooth, accurate motion even under demanding loads. Built-in encoder feedback improves positioning accuracy…
- [2.2KW Air-Cooled Spindle] Wide Material Capability with Stable Output Equipped with a 2.2KW ER20 air-cooled spindle and HuanYang VFD, offering variable speed control from 0–18,000 RPM. Compatible with 1/4"–1/2" (1–13mm) tooling, delivering consistent cutting performance…
- [Rigid Frame & Precision Motion System] Linear Rails with Ball Screw Drive Built with industrial linear guide rails and precision ball screws on all axes for enhanced rigidity and smooth motion. The optimized 24" x 20" work area balances footprint and capability, making it ideal…
- [Expandable CNC Platform] ATC Upgrade, Multi-Interface & Safety Protection Designed for future upgrades with support for 4th-axis rotary, laser module, MPG, and touch probe. ATC system compatibility enables automated tool changes (upgrade required). Integrated high-speed limit…
